Quick Details

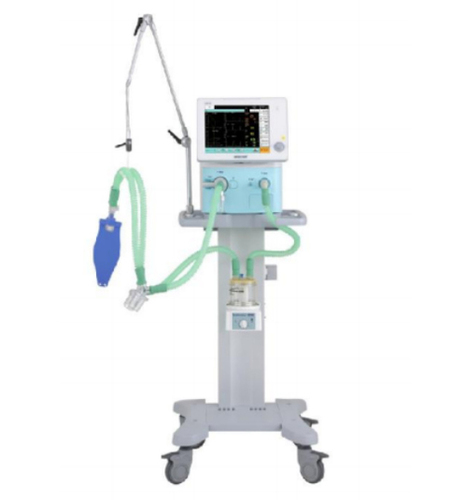

Brand Name: ICU Machine Ventilator
Model Number:PA-900B(STANDARD MODEL)
Place of Origin:Jiangsu, China
Certificate:CE ISO
Warranty:1 Year
Display:10.4 inch high visibility color TFT display
Back-up Power Supply:At least 4 hours
Adjustable Oxygen Concentration:45-100%
Humidifier:9 Level adjustable
Type:Breathing Apparatus
Supply Ability:100 Unit/Units per Month
Packaging Details:Standard Export Package
Specifications
Model:900B (Standard Model)/900B (Advanced Model)
Display:10.4 inch high visibility color TFT display
Ventilation Mode:A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL
Minute Volume:Greater than or equal to 18L
Back-up Power Supply:At least 4 hours
Tidal Volume:Adjustable range: 20-1500ml, Display range: 0-2000ml
Respiratory Rate:1-99bpm
Inspiratory/expiratory (I:E) ratio:4:1-1:4
PEEP:0-10cmH2O
SIMV Rate:1-20bpm
Inspiratory Pressure Trigger:.-10-10cmH2O:Trigger Sensitivity (flow)1-10L/m
Inspiratory Plateau:Adjustable from 0-50% of inspiratory time
Adjustable Oxygen Concentration:45-100%/21-100%
Gas Supply Requirement:280~600 kPa medical grade oxygen and compressed air supply
Pressure Limit:1.0kPa~6.0kPa
Maximum Safe Operating Pressure
â¤6.0kPa
Tidal Volume Alarm:Upper Limit: 10~2000ml, Lower Limit: 0~1800ml
Airway Pressure Alarm:Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa
Oxygen Concentration AlarM:Upper Limit: 22~100%, Lower Limit: 21~80%
![]() |
